- Pack

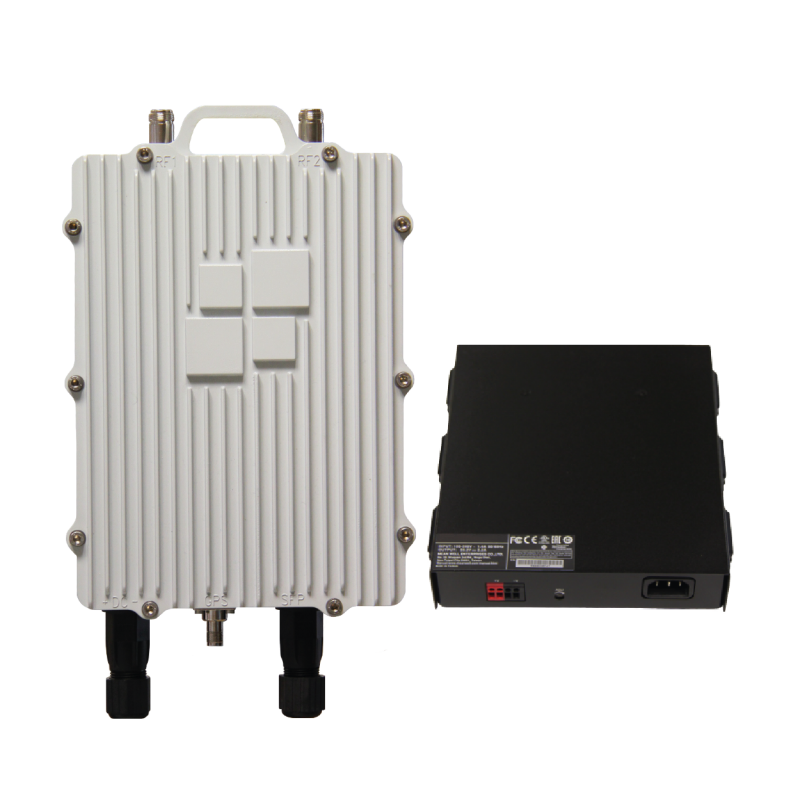

AXS-BS-452-N + ACC-PSU48AC120-EU
140Mbps 5GHz ultracompact Base Station with Power Supply
Base station with four carriers in just two connectors, with high capacity and no user limit. Designed for very high density networks in the 5GHz band.
IMPORTANT NOTE: This product is only compatible with Albentia Systems AXS-CEP100, AXS-CPE200 and AXS-CPE300 user terminals.
Antenna not included.
AXS-BS-452-N + ACC-PSU48AC120-EU
Data sheet
- Frequency
- 4.9-5.9GHz
- Capacity
- 140 Mbps
- Band
- 5GHz
- Consumption
- 60W típicos, 90W máximo (100% tráfico)
- Synchronism
- GPS integrado
- Channel BW
- 10 / 7 / 5 / 3.5 / 1.75 MHz
- Power Supply
- Línea bifilar 18-58V DC
- Data Interface
- Gigabit Ethernet
- Weight
- 4kg (herraje incluido)
- Dimensions
- 210 x 270 x 70 mm (sin embalaje)
- Temperature range
- De -30ºC a +55ºC (ambiente, en operación)
- Efficience
- 3,5bps/Hz
- Antenna
- 2 conectores N para antena externa
- channel jump
- 1MHz
- BPSK Sensitivity
- -92 dBm @ 10MHz / -99 dBm @ 1.75MHz
- 64QAM Sensitivity
- -74 dBm @ 10MHz / -82 dBm @ 1.75MHz
- Max. Tx power
- 23 dBm por canal /32 dBm total
- Modulation
- OFDM de 256 portadoras
- Subcarrier mod.
- Adaptativa BPSK, QPSK, 16QAM y 64QAM (7 niveles diferentes con combinación FEC)
- FEC
- Sí, Reed-Solomon concatenado con código convolucional
- DFS
- Sí
- Downlink/Uplink
- Desde 12% hasta 95%
- Access to the medium
- TDMA síncrono con implementación hardware
- Duplexing technique
- TDD (Time Domain Duplexing)
- QoS Control
- Colas independientes por servicio. 5 niveles de QoS (BE, nRTPS, eRTPS, RTPS, UGS)
- Max. CPEs by sector
- Ilimitados
- Service differentiation
- Capa 2: Dirección MAC origen/destino, EtherType, etiqueta VLAN/PPPoE Capa 3: DSCP ToS, dirección IP origen/destino, subred, protocolo Capa 4: Puerto TCP o UDP origen/destino
- Layer 2 network functionality
- Bridging (IEEE 802.1)
- Layer 3 network functionality
- Routing dinámico/estático, NAT, DHCP servidor/cliente
- Remote management
- Web, SSH, XML-RPL, SNMP v1, 2 y 3
- Encryption
- AES128/256
- Latency
- 5ms
- X.509 Certificates
- Sí, autenticación CPEs
- Max size package
- 2048 bytes
- Advanced management
- Soporte canal SMC, doble IP datos/gestión
- Radio access protocol
- ETSI EN 301 893 V2.1.1 ETSI EN 302 502 V2.1.1
aerDOCSIS compatible con IEEE 802.16-2017 - Enviroment
- IP67 (protección) ETSI EN 60951-1 (seguridad) UNE EN 60068-1-1/2/11/14/30 (ambiental) ETSI EN 301 489-1 V1.9.2 (EMC) ETSI EN 301 489-17 V2.2.1 (EMC)
- Independent radio carriers
- 8
- Spectrum analyzer
- Sí, inteligente
- VLAN
- 802.1q, 802.1p, soporte q-in-q, ilimitadas VLANs
- User provisioning
- Radius, CPS y fichero xml local
