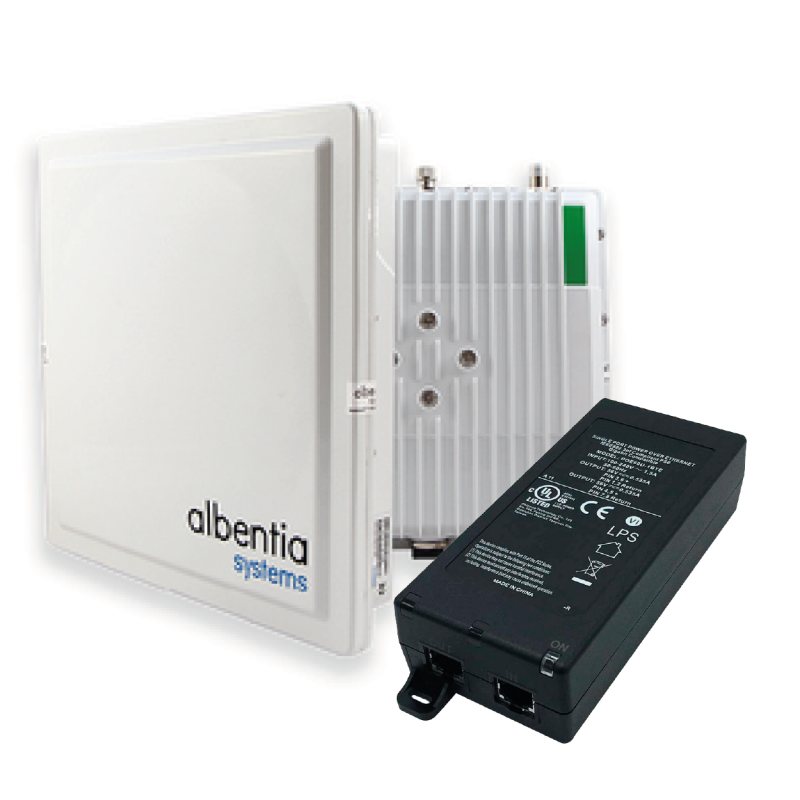

140Mbps 5GHZ Base Station with PoE

Multicarrier device designed to provide coverage in access networks that offers 140Mbps in the 5GHz band through four carriers with unlimited CPEs capacity.

IMPORTANT NOTE: This product is only compatible with the AXS-CPE100 and AXS-CPE200 user terminals in the 5GHZ band from Albentia Systems.

PoE power supply and antenna not included.

This pack contains

Active PoE 60W EU cable

€170.00

x 1

140Mbps 5GHZ Base Station

€1,570.00

x 1

Product Details
Attachments

Reference AXS-BS-450-N + ACC-POE57AC60-EU

Data sheet

Frequency: 4.9-5.9GHz
Capacity: 140Mbps
Band: 5GHz
Consumption: 22W típicos, 35W máximo (100% tráﬁco)
Synchronism: GPS integrado
Channel BW: 10 / 7 / 5 / 3.5 / 1.75 MHz
Power Supply: PoE 802.3af Class 4 (60W) 48-57VDC (4 pares)
Data Interface: Gigabit Ethernet
Weight: 4,5 kg (herraje incluido)
Dimensions: 265 x 265 x 70 mm (sin embalaje)
330 x 330 x 110 mm (embalado)
Temperature range: De -30ºC a +55ºC (ambiente, en operación)
Efficience: 3,5bps/Hz
Antenna: 4 conectores N para antena externa
channel jump: 1MHz
BPSK Sensitivity: -92 dBm @ 10MHz / -99 dBm @ 1.75MHz
64QAM Sensitivity: -74 dBm @ 10MHz / -82 dBm @ 1.75MHz
Max. Tx power: 23 dBm por canal / 29 dBm total
Modulation: OFDM de 256 portadoras
Subcarrier mod.: 64QAM (7 niveles diferentes con combinación FEC)
FEC: Sí, Reed-Solomon concatenado con código convolucional
DFS: Sí
Downlink/Uplink: Desde 12% hasta 95%
Access to the medium: TDMA síncrono con implementación hardware
Duplexing technique: TDD (Time Domain Duplexing)
QoS Control: Colas independientes por servicio. 5 niveles de QoS (BE, nRTPS, eRTPS, RTPS, UGS)
Max. CPEs by sector: Ilimitados
Service differentiation: Capa 2: Dirección MAC origen/destino, EtherType, etiqueta VLAN/PPPoE Capa 3: DSCP ToS, dirección IP origen/destino, subred, protocolo Capa 4: Puerto TCP o UDP origen/destino
Layer 2 network functionality: Bridging (IEEE 802.1)
Layer 3 network functionality: Routing dinámico/estático, NAT, DHCP servidor/cliente
Remote management: Web, SSH, XML-RPL, SNMP v1, 2 y 3
Encryption: AES128/256
Latency: 5ms
X.509 Certificates: Sí, autenticación CPEs
Max size package: 2048 bytes
Advanced management: Soporte canal SMC, doble IP datos/gestión
Radio access protocol: aerDOCSIS compatible con IEEE 802.16-2017
Radio: ETSI EN 301 893 V2.1.1 ETSI EN 302 502 V2.1.1
Enviroment: IP67 (protección) ETSI EN 60951-1 (seguridad) UNE EN 60068-1-1/2/11/14/30 (ambiental) ETSI EN 301 489-1 V1.9.2 (EMC) ETSI EN 301 489-17 V2.2.1 (EMC)
Independent radio carriers: 4
Spectrum analyzer: Sí, inteligente
VLAN: 802.1q, 802.1p, soporte q-in-q, ilimitadas VLANs
User provisioning: Radius, CPS y ﬁchero xml local
