- Pack

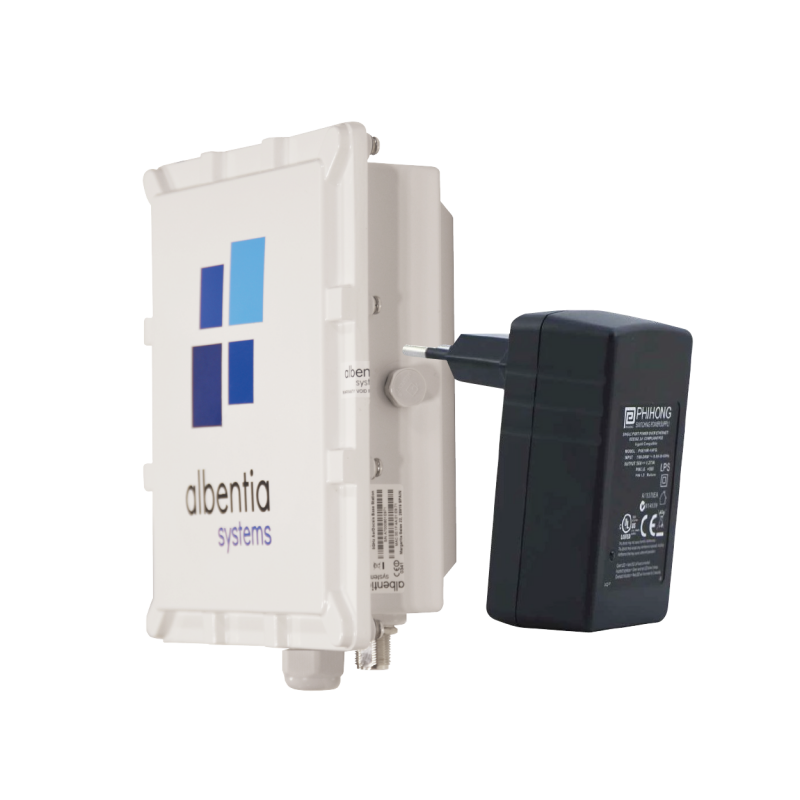

AXS-BS-150-N + ACC-POE57AC15-EU
35Mbps 5GHz Base Station with PoE
Base station with a single carrier, it can offer up to 35Mbps net with a QoS equivalent to HFCs. Provides coverage in access networks in the 5GHz band.
IMPORTANT NOTE: This product is only compatible with AXS-CPE100 user terminals in the 5GHz band from Albentia Systems.
PoE power supply and antenna not included.
AXS-BS-150-N + ACC-POE57AC15-EU
Data sheet
- Frequency
- 4.9-5.9GHz
- Capacity
- 35 Mbps
- Band
- 5GHz
- Consumption
- 4W típicos, 6W máx. (100% tráfico)
- Synchronism
- Sí, para más de un sector con unidad SCU
- Channel BW
- 10 / 7 / 5 / 3.5 / 1.75 MHz
- Power Supply
- PoE.3af 36-57VDC - PIN 1,2 / 3,6
- Data Interface
- Ethernet 10/100 Base T
- Weight
- 2,3 kg (herraje incluido)
- Dimensions
- 330 x 330 x 110 mm (embalado)
- Temperature range
- De -30ºC a +55ºC (ambiente, en operación)
- Efficience
- 3,5bps/Hz
- Antenna
- Conector N para antena externa
- channel jump
- 1MHz
- BPSK Sensitivity
- - 92dBm @ 10MHz / -99dBm @ 1.75MHz
- 64QAM Sensitivity
- -74dBm @ 10MHz / -82dBm @ 1.75MHz
- Max. Tx power
- 23dBm
- Modulation
- OFDM de 256 portadoras
- Subcarrier mod.
- Adaptativa BPSK, QPSK, 16QAM y 64QAM (7 niveles diferentes con combinación FEC)
- FEC
- Sí, Reed-Solomon concatenado con código convolucional
- DFS
- Sí
- Downlink/Uplink
- Desde 12% hasta 95%
- Access to the medium
- TDMA síncrono con implementación hardware
- Duplexing technique
- TDD (Time Domain Duplexing)
- QoS Control
- Colas independientes por servicio. 5 niveles de QoS (BE, nRTPS, eRTPS, RTPS, UGS)
- Max. CPEs by sector
- 50
- Service differentiation
- Capa 2: Dirección MAC origen/destino, EtherType, etiqueta VLAN/PPPoE Capa 3: DSCP ToS, dirección IP origen/destino, subred, protocolo Capa 4:Puerto TCP o UDP origen/destino
- Max. number services
- Sin límite
- Layer 2 network functionality
- Bridging 802.1, VLAN 802.1q, q-in-q, 802.1p
- Layer 3 network functionality
- Routing dinámico/estático, NAT, DHCP servidor/cliente
- Remote management
- Web, SSH, XML-RPL, SNMP v1, 2 y 3, Radius
- Encryption
- AES128/256
- Latency
- 5ms
- X.509 Certificates
- Sí, autenticación CPEs
- Max size package
- 2048 bytes
- Local management
- Puerto para ACC-HU
- Advanced management
- Soporte canal SMC, doble IP datos/gestión
- Radio access protocol
- aerDOCSIS compatible con IEEE 802.16-2017
- Radio
- ETSI EN 301 893 V.1.7.1 - ETSI EN 302 502 V1.2.1
- Enviroment
- IP67 (protección) ETSI EN 60951-1 (seguridad) UNE EN 60068-1-1/2/11/14/30 (ambiental) ETSI EN 301 489-1 V1.9.2 (EMC) ETSI EN 301 489-17 V2.2.1 (EMC)
