- Pack

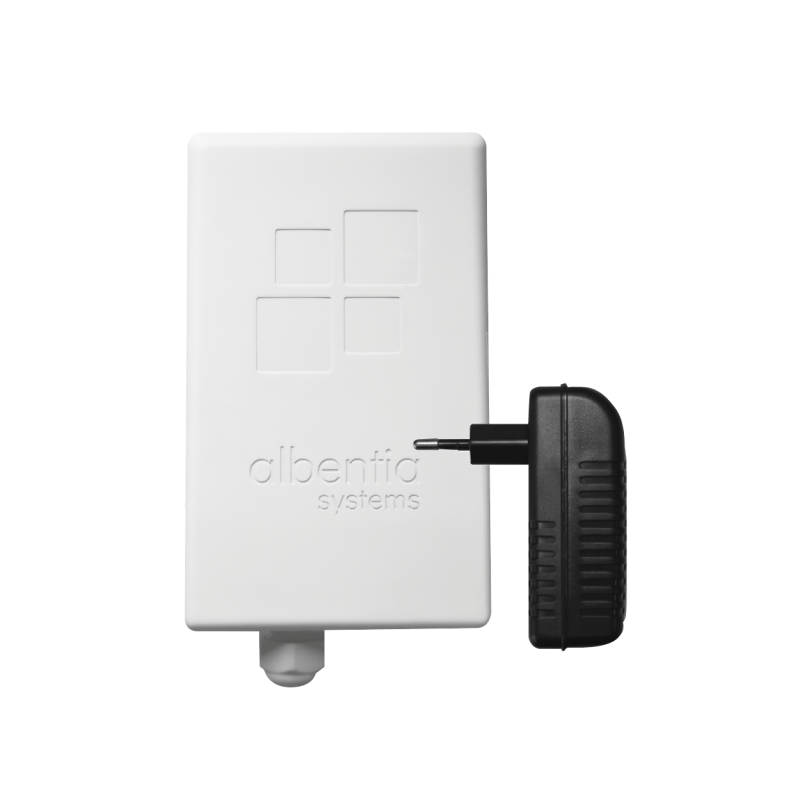

AXS-CPE450-15 + ACC-POE450ACP-EU
140Mbps 5GHz CPE with 15dBi antenna and power supply
Multicarrier user terminal indicated for deployments that demand high capacity and speed, offering up to 140Mbps. It has an integrated 15dBi antenna.
IMPORTANT NOTE: This product is only compatible with Albentia Systems AXS-BS-450-N, AXS-BS452-N and AXS-BS-850-N base stations.
AXS-CPE450-15 + ACC-POE450ACP-EU
Data sheet
- Capacity
- 140Mbps DL / 70Mbps UL
- Band
- 4900-5875MHz
- Consumption
- 12w típicos, 18w máximo (100% tráfico)
- Channel BW
- 10/7/5/3.5/1.75MHz
- Power Supply
- PoE pasivo 48 VDC Gigabit (no incluido)
- Data Interface
- Ethernet 10/100/1000 Base T
- Weight
- 650 g (embalado)
- Dimensions
- 220 x 85 x 120 mm (embalado)
- Temperature range
- De -30ºC a +55ºC (ambiente, en operación)
- Efficience
- 3.5bps/Hz
- Antenna
- 15dBi integrada - 30º (H) / 25º (V)
- channel jump
- 1MHz
- BPSK Sensitivity
- -91dBm @ 10MHz, -81dBm @1.75MHz
- 64QAM Sensitivity
- -75dBm @10MHz, -81dBm @1.75MHz
- Max. Tx power
- 23dBm
- Modulation
- Carrier Aggregation de OFDM de 256 portadoras
- Subcarrier mod.
- Adaptativa BPSK, QPSK, 16QAM y 64QAM (7 niveles diferentes con combinación FEC)
- FEC
- Sí, Reed-Solomon concatenado con código convolucional
- DFS
- Sí
- Downlink/Uplink
- Desde 12% hasta 95%
- Access to the medium
- TDMA síncrono con implementación hardware
- Duplexing technique
- TDD (Time Domain Duplexing)
- QoS Control
- Colas independientes por servicio. 5 niveles de QoS (BE, nRTPS, eRTPS, RTPS, UGS)
- Service differentiation
- Capa 2: Dirección MAC origen/destino, EtherType, etiqueta VLAN/PPPoE / Capa 3: DSCP ToS, dirección IP origen/destino, subred, protocolo / Capa 4:Puerto TCP o UDP origen/destino
- Max. number services
- Ilimitados
- Layer 2 network functionality
- Bridging (IEEE 802.1), cliente PPPoE
- Layer 3 network functionality
- Routing dinámico/estático, NAT, DHCP servidor/cliente
- Remote management
- Web, SSH, XML-RPL, SNMP v1, 2 y 3
- Encryption
- AES128/256
- X.509 Certificates
- Sí
- Local management
- Puerto para ACC-HU, Ethernet
- Advanced management
- Soporte canal SMC, doble IP datos/gestión
- Radio access protocol
- aerDOCSIS compatible con IEEE 802.16-2017
- Radio
- ETSI EN 301 893 V.1.7.1, ETSI EN 302 502 V.1.2.1
- Enviroment
- IP67 (protección), ETSI EN 60951-1 (seguridad), UNE EN 60068-1-1/2/11/14/30 (ambiental), ETSI EN 301 489-1 V1.9.2 (EMC), ETSI EN 301 489-17 V2.2.1 (EMC)
- VLAN
- 802.1q, 802.1p, soporte q-in-q, ilimitadas VLANs
- MTU
- 2048 bytes
Multicarrier user terminal indicated for deployments that demand high capacity and speed, offering up to 140Mbps. It has an integrated 15dBi antenna.
IMPORTANT NOTE: This product is only compatible with Albentia Systems AXS-BS-450-N, AXS-BS452-N and AXS-BS-850-N base stations.
