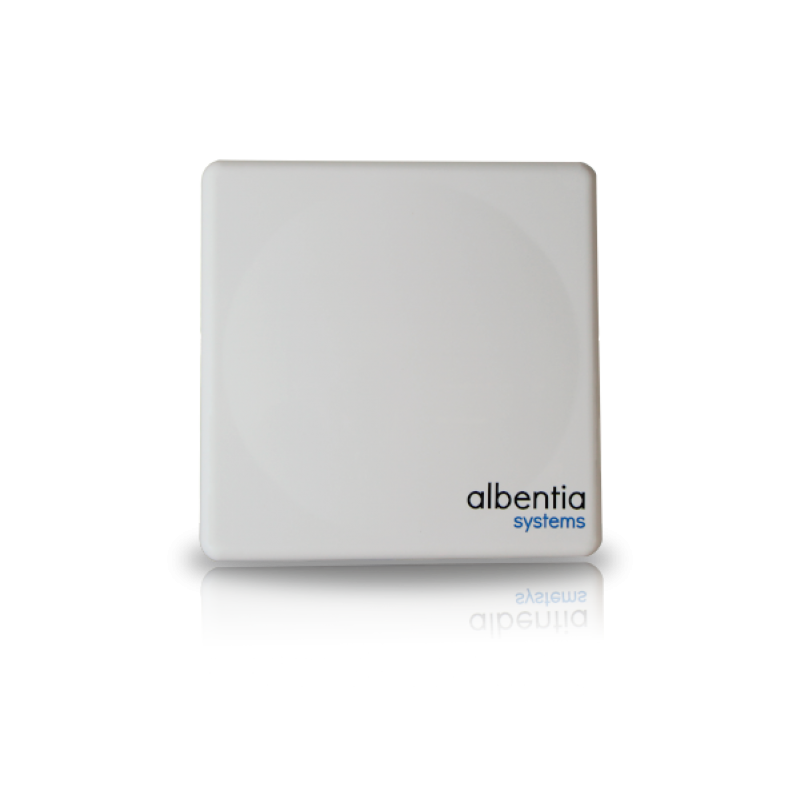

PRO-SU-1250-23
70Mbps Subscriber Station 23dBi antenna
Subscriber station for industrial and security applications such as video surveillance, as well as for corporate access in the 5GHz band with integrated 23dBi antenna. It can manage up to 70 Mbps with unlimited differentiated services guaranteeing QoS.
IMPORTANT NOTE: This product is only compatible with Albentia Systems AXS-BS-150-N, AXS-BS-450-N, AXS-BS-452-N and AXS-BS-850-N base stations.
PoE power supply not included.
PRO-SU-1250-23
Data sheet
- Frequency
- 4.9-5.9GHz
- Band
- 5GHz
- Channel BW
- 10 / 7 / 5 / 3.5 / 1.75 MHz
- Power Supply
- Passive PoE 24 VDC 4/5+, 7/8-
- Data Interface
- Ethernet 10/100 Base T
- Weight
- 3 kg (herraje incluido)
- Dimensions
- 360 x 350 x 110 mm (embalado) / 306 x 306 x 82 mm (sin embalaje)
- Temperature range
- De -30ºC a +55ºC (ambiente, en operación)
- Efficience
- 3,5bps/Hz
- Antenna
- 23 dBi integrada
- channel jump
- 1MHz
- BPSK Sensitivity
- -92dBm @ 10MHz / -99dBm @ 1.75MHz
- 64QAM Sensitivity
- -75dBm @ 10MHz / -82dBm @ 1.75MHz
- Max. Tx power
- 23dBm
- Modulation
- OFDM
- Subcarrier mod.
- Adaptativa BPSK, QPSK, 16QAM y 64QAM (7 niveles diferentes con combinación FEC)
- FEC
- Sí, Reed-Solomon concatenado con código convolucional
- DFS
- Sí
- Downlink/Uplink
- Desde 100/0 hasta 0/100, fija o dinámica
- Access to the medium
- TDMA síncrono con implementación hardware
- Duplexing technique
- TDD (Time Domain Duplexing)
- Service differentiation
- Capa 2: Dirección MAC origen/destino, EtherType, etiqueta VLAN/PPPoE Capa 3: DSCP ToS, dirección IP origen/destino, subred, protocolo Capa 4:Puerto TCP o UDP origen/destino
- Layer 2 network functionality
- Bridging (IEEE 802.1), VLAN 802.1q
- Layer 3 network functionality
- Routing dinámico/estático, NAT, DHCP servidor/cliente
- Remote management
- Web, SSH, XML-RPL, SNMP v1, 2 y 3, Radius
- Encryption
- AES 256, AES 128 y 3DES
- X.509 Certificates
- Sí
- Local management
- Puerto para ACC-HU, Serie
- Advanced management
- Soporte canal SMC, doble IP datos/gestión
- Radio
- ETSI EN 301 893 V1.5.1 (5GHz), ETSI EN 302 502 V1.2.1 (5.8GHz), ETSI EN 302 326-2
- Enviroment
- ODU: IP67 (protección), ETSI EN 60950-1: 2006 (seguridad). IDU: IEC 61000-4-2 (ESD), IEC 61000-4-5 (Surge)
- Flow of services through SU
- Sin límite
- MTU
- 2048
- Enclosure ODU
- Aluminio pintado ADC12
Subscriber station for industrial and security applications such as video surveillance, as well as for corporate access in the 5GHz band with integrated 23dBi antenna. It can manage up to 70 Mbps with unlimited differentiated services guaranteeing QoS.
IMPORTANT NOTE: This product is only compatible with Albentia Systems AXS-BS-150-N, AXS-BS-450-N, AXS-BS-452-N and AXS-BS-850-N base stations.
PoE power supply not included.
