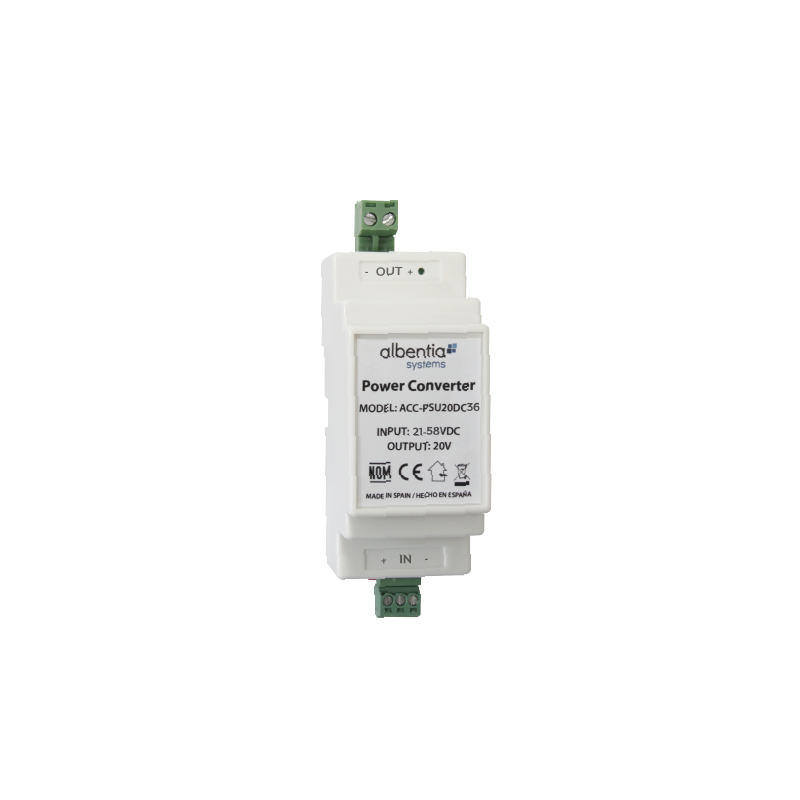

Power converter input 24/48VDC output 20VDC 25W

Data sheet

Connector

Includes wire clamps for input and output; Includes 5.5 x 2.1 mm power jack for output

Protection

Reverse polarity at input

Weight

0,5kg without packaging

Dimensions

3.7 x 11.4 x 6 cm including projections

Compatibilità

AXS-CPE150-15/RS, AXS-CPE250-15/RS; AXS-CPE350-15/RS

Current output

1.25 A

Output power

25 W

Efficience

85% typ.

Temperature

Operation: -20ºC to 50ºC; Storage: -25ºC to 85ºC

Humidity

From 5% to 90% (non-condensing)

Input voltage

21-58 VDC

Output voltage

20 VDC
