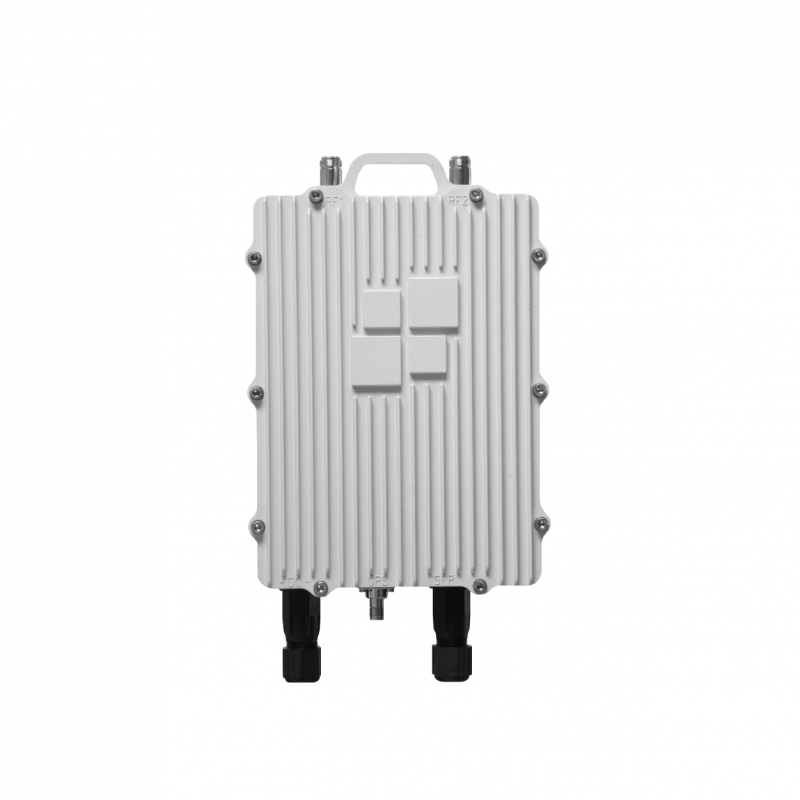

LNK-LU452-N
140Mbps 4.9 GHz and 5GHz Radiolink
Four-carrier radio link in just two connectors. Designed to provide high-capacity, long-range connectivity, with robustness against interference in the 4.9GHz security band and the free 5GHz band.
IMPORTANT NOTE: This product is only compatible with another Albentia Systems radio link LNK-LU452-N.
Feeder not included.
LNK-LU452-N
Data sheet
- Frequency
- 4.9-5.9GHz
- Capacity
- 140 Mbps
- Band
- 5GHz
- Consumption
- 60W típicos, 90W máximo (100% tráfico)
- Synchronism
- GPS integrado
- Channel BW
- 10 / 7 / 5 / 3.5 / 1.75 MHz
- Power Supply
- Línea bifilar 18-58V DC
- Data Interface
- Gigabit Ethernet SFP (cobre/fibra)
- Weight
- 4kg (herraje incluido)
- Dimensions
- 210 x 270 x 70 mm (sin embalaje)
- Temperature range
- De -30ºC a +55ºC (ambiente, en operación)
- Efficience
- 3,5bps/Hz
- Antenna
- 2 conectores N para antena externa
- channel jump
- 1MHz
- BPSK Sensitivity
- -92 dBm @ 10MHz / -99 dBm @ 1.75MHz
- 64QAM Sensitivity
- -74 dBm @ 10MHz / -82 dBm @ 1.75MHz
- Max. Tx power
- 23 dBm por canal /29 dBm total
- Modulation
- OFDM de 256 portadoras
- Subcarrier mod.
- Adaptativa BPSK, QPSK, 16QAM y 64QAM (7 niveles diferentes con combinación FEC)
- FEC
- Sí, Reed-Solomon concatenado con código convolucional
- DFS
- Sí
- Downlink/Uplink
- Ajustable de 30% a 90% o automático, en función de la duración de trama
- Access to the medium
- TDMA síncrono con implementación hardware
- Duplexing technique
- TDD (Time Domain Duplexing)
- QoS Control
- Colas independientes por servicio. 5 niveles de QoS (BE, nRTPS, eRTPS, RTPS, UGS)
- Service differentiation
- Capa 2: Dirección MAC origen/destino, EtherType, etiqueta VLAN/PPPoE Capa 3: DSCP ToS, dirección IP origen/destino, subred, protocolo Capa 4: Puerto TCP o UDP origen/destino
- Max. number services
- Ilimitados
- Layer 2 network functionality
- Bridging (IEEE 802.1)
- Layer 3 network functionality
- Routing dinámico/estático, NAT, DHCP servidor/cliente
- Remote management
- Web, SSH, XML-RPL, SNMP v1, 2 y 3
- Encryption
- AES128/256
- Max size package
- 2048 bytes
- Advanced management
- Soporte canal SMC, doble IP datos/gestión
- Radio access protocol
- aerDOCSIS compatible con IEEE 802.16-2017
- Enviroment
- IP67 (protección) ETSI EN 60951-1 (seguridad) UNE EN 60068-1-1/2/11/14/30 (ambiental) ETSI EN 301 489-1 V1.9.2 (EMC) ETSI EN 301 489-17 V2.2.1 (EMC)
- Independent radio carriers
- 4
- Spectrum analyzer
- Sí, inteligente
- VLAN
- 802.1q, 802.1p, soporte q-in-q, ilimitadas VLANs
